TempoTech’s Thermocouple connection heads are enclosures designed to house the thermocouple junction and provide a safe, protected environment for the connections to the temperature measurement system. These heads are typically used in industrial or scientific settings where temperature measurement needs to be done reliably and securely.
Key features:-
- Protection: They protect the thermocouple from physical damage, environmental factors like moisture, dust, or chemicals, and prevent corrosion.
- Wiring: They provide a space for wiring the thermocouple to the measuring equipment, often including terminals for easy connection and disconnection.
- Ease of Maintenance: They allow for easier replacement or servicing of the thermocouple sensor without needing to disturb the rest of the setup.
- Environmental Sealing: Many connection heads are sealed to prevent moisture or contaminants from affecting the thermocouple or wiring.
Application Note

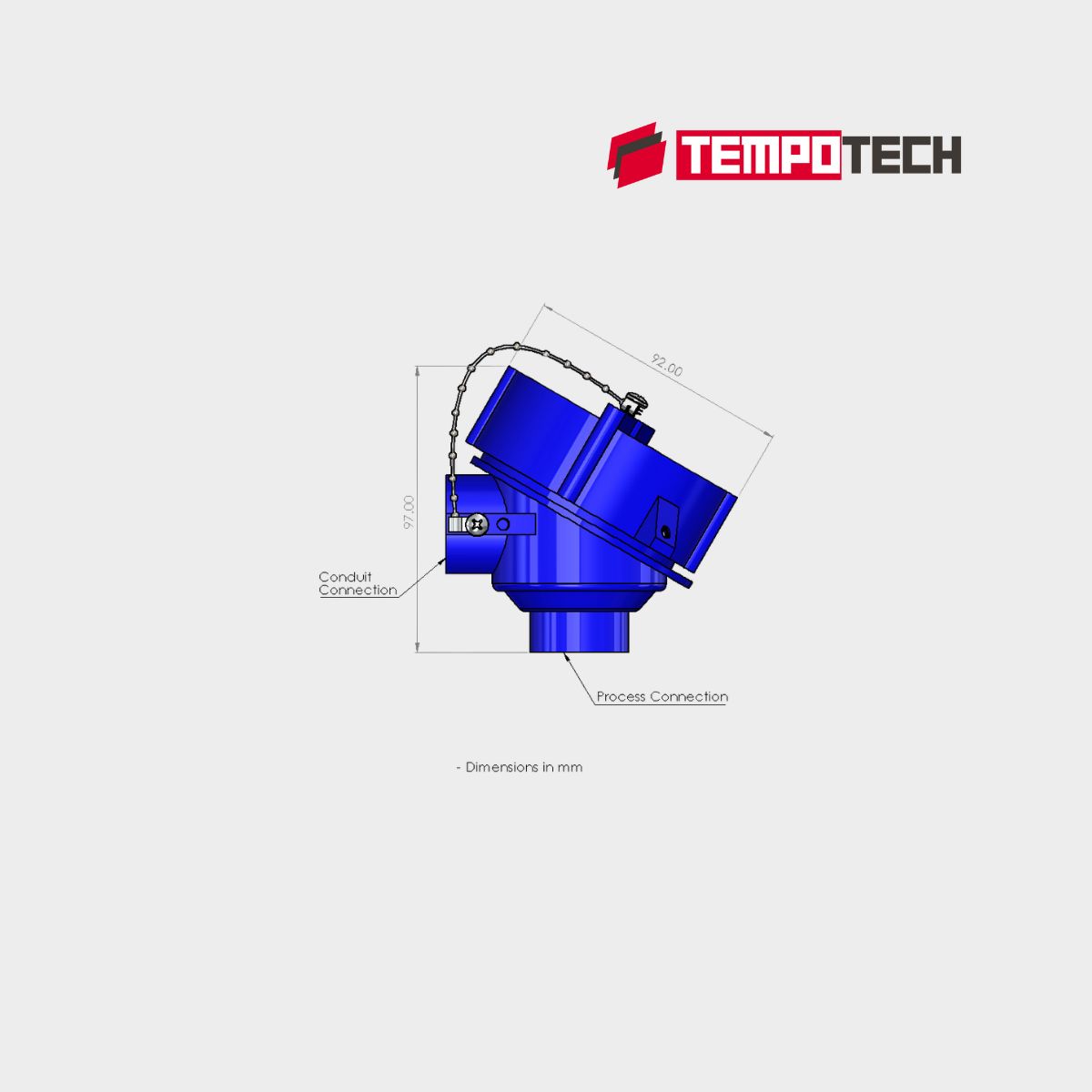

SX-EXPLOSION PROOF Stainless Steel Head – SX Explosion Proof Stainless Steel Thermocouple Connection Head is a high-performance enclosure designed to protect thermocouple junctions and wiring in hazardous and corrosive industrial environments. Manufactured from premium-grade stainless steel, it offers superior resistance to corrosion, making it ideal for demanding applications such as offshore, marine and chemical processing industries.
The explosion-proof design ensures that any internal ignition is safely contained within the enclosure, preventing it from propagating to the surrounding atmosphere. This makes the SX Series suitable for use in hazardous locations where safety and compliance are critical.
Designed for both durability and usability, the connection head provides sufficient space for wiring connections and includes terminals for secure and efficient installation. It also allows easy maintenance and replacement of thermocouple sensors without disrupting the entire system, reducing downtime and operational complexity.
With sealed construction to protect against moisture, dust and chemical exposure, and available in multiple NPT connection configurations, the SX Series delivers reliable performance in extreme environments. It is an essential component in industrial temperature measurement systems where safety, durability and long-term reliability are required.
Explosion-proof design: The thermocouple head is made from durable, heavy-duty materials stainless steel and aluminum. The “explosion-proof” designation refers to the housing’s ability to contain the explosion, preventing it from reaching the surrounding environments.
| PART NO. | TUBE NPT | CONDUIT NPT |
| EXP-SX-12-34 | 1/2” NPT | 3/4” NPT |
| EXP-SX-12-12 | 1/2” NPT | 1/2” NPT |
| EXP-SX-34-34 | 3/4” NPT | 3/4” NPT |
